Warranty : 3years
Chargeable : Yes
Application : BOATS, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Security system, UPS, WIND SYSTEM, Lighting, medical equipment
Brand Name : LEOCH
Model Number : DJM12-150S
Place of Origin : Zhejiang, China
Weight : 40.5kg
Product name : Lead Acid Battery
Size : 483*170*238mm
Internal Resistance : 4mΩ
Operating Temperature Range : Charge: 0 C~40℃,Discharge: -20 C~55℃,Storage: -15 C~50℃
Capacity affected by Temperature : 40℃ 103% 25℃100% 0℃85%
Float Charging Voltage : 13.5 to 13.8V;Recom.13.5V
Equalizing Charging Voltage : 13.8 to 14.1V; Recom.14.1
Float Charging Temp.Coefficient : -18mV/℃
Equalizing Charging Temp. Coefficient : -24mV/℃
Max.Charging Current : 37.5A
Packaging Details : Cartons/pallets
MOQ : 2 pieces
Price : $132.00/pieces 2-499 pieces
Warranty | 3years |
Chargeable | Yes |
Application | BOATS, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Security system, UPS, WIND SYSTEM, Lighting, medical equipment |
Brand Name | LEOCH |
Model Number | DJM12-150S |
Weight | 40.5kg |
Product name | Lead Acid Battery |
Size | 483*170*238mm |
Internal Resistance | 4mΩ |
Operating Temperature Range | Charge: 0 C~40℃,Discharge: -20 C~55℃,Storage: -15 C~50℃ |
Capacity affected by Temperature | 40℃ 103% 25℃100% 0℃85% |
Float Charging Voltage | 13.5 to 13.8V;Recom.13.5V |
Equalizing Charging Voltage | 13.8 to 14.1V; Recom.14.1 |
Float Charging Temp.Coefficient | -18mV/℃ |
Equalizing Charging Temp. Coefficient | -24mV/℃ |
Max.Charging Current | 37.5A |
Max.Continuous Discharge Current | 429A |
Month Self Discharge | 2% (20℃) |
Terminal | T11 [Female M8] |
Container Material | ABS [UL94-HB] |
![]() |

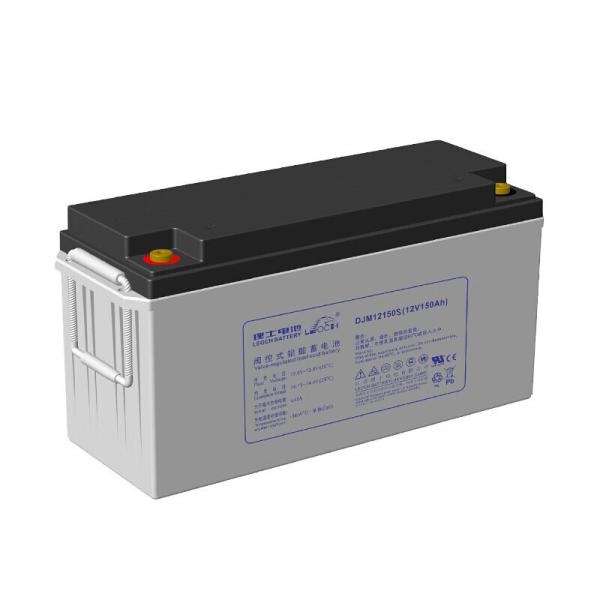

12V150Ah Sealed Lead Acid Battery for UPS Power Communication Internal Resistance 4mΩ Images |
